WOOD BEAM SIZINGTM   WEIGHT module

SELECTIONS

• Enter live and dead loads per floor.
• Click on the default checkbox to restore original values.

• Roof live or snow load, used for loading
• Tributary area for the beam or joist
• Current beam span
• Snow load options, when roof loads are active

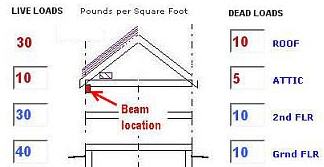

LIVE and DEAD LOADS

Default weights indicated are typical residential code requirements. Modify live and dead loads for each level as needed.

Click below for examples of typical building weight values.

• Roof loads
• Snow loads
• Floor loads
• Attic loads

Weights in red are currently active for the beam location selected.

For WBS Basic version, roof live load is set at either the ground snow load entered at the Plan module, or the code minimum construction live load, whichever is greater.

SNOW LOAD OPTIONS

When roof loads are active for headers, WBS lists the possible snow load reductions based on snow drifting or sliding off or being blown off the roof, as selected at the Plan module.

See WBS Extended Basic for snow loading options and detailed snow calculations.
